Benefits
- Advanced, intelligent, microprocessor-controlled equipment
- User-friendly, simple, convenient operation, clear LED indications
- Clearly audible and visible sound and light signals
- Fully automatic, programmable systems
- Self-fault and service alarms for safety
- DIN rail or wall-mounted units
- Equipment meeting the latest standards
- Favourable price
- Economical operation Receiving 1 or 2 sensors
- National service background,
- 3 years warranty for operation according to the manual
Certifications
CE compliance
EN 60079-0:2010,
EN 60079-1:2008,
EN 60079-29-1:2008,
EN 50402/A1:2009,
EN 50104:2011,
EN 50271:2011,
EN 50402:2006,
EN 50054:2000,
EN 50057:2000,
EN 45544- (1,2,3,4):2015

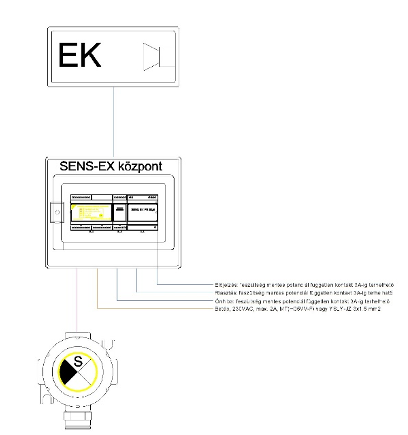

System plan

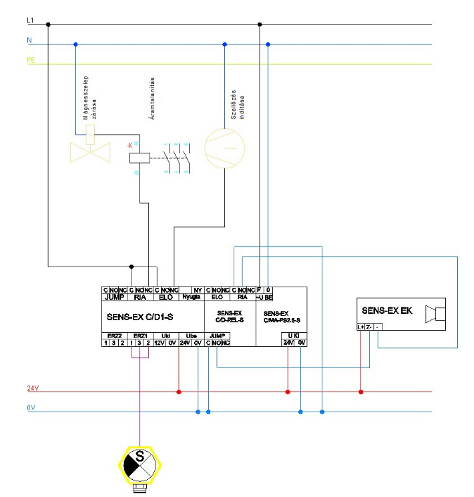

Connection
| Technical specification | |
| Number of signal levels | 2 + self-fault |
| Power voltage | 24V DC (230V AC) |
| Signal levels | 20 and 40 ARH% |
| Current consumption | Max.200mA +300mA using AJK |
| Uninterruptible power supply | Optional |
| Relay output | 3 x MORSE |
| Structure of the sensor network | Parallel network |
| Relay load capacity | ~ 250V 1A, 48VDC resistive |
| Number of measuring points | 1 |
| Relay extension possibility | 3 x MORSE |
| Measuring range | 1-100 ARH% |
| Operating temperature | -10°C – +50°C |
| Operating pressure | 900 -1100 mBar |
| Display | LED status indication |
| Operating humidity | 10 – 90 rH% |
| Ingress protection (IEC 529) | IP21 (IP65) |
| Signal processing | Microprocessor |
| Sound alert | Built-in buzzer |
| Clear | Push button |
Accessories / Ordering information
CD1-S-U
SENS-EX C/D1-S-U Rail-mounted, single channel universal gas detection control panel, LED status indication, 3 relay outputs, 24VDC, IP20, for TG/S, TG/A—S and 4-20mA transmitters
CD-REL-S
SENS-EX C/D-REL-S Rail-mounted relay expansion module for CD-S control panels with 3 relays, 24VDC, IP20
CMA-PS25-S – Power supply 2,5 A
CMA-PS15-S – Power supply 1,5 A
MFK12
MFK18
