Advantages
- Modern, intelligent, microprocessor-controlled equipment
- Fully automatic operation
- Self fault indication for safety
- It has two chemical cell sensors
- Equipment according to EN 50545-1 standards
- Reasonable price
- National service background,
- 3-year warranty in case of operation according to the instrument manual
Certificates
CE conformity
EN 50402:2017,
EN 50104:2020,
EN 50271:2018,
EN 50402:2017,
EN 50054:2000,
EN 50057:2000,

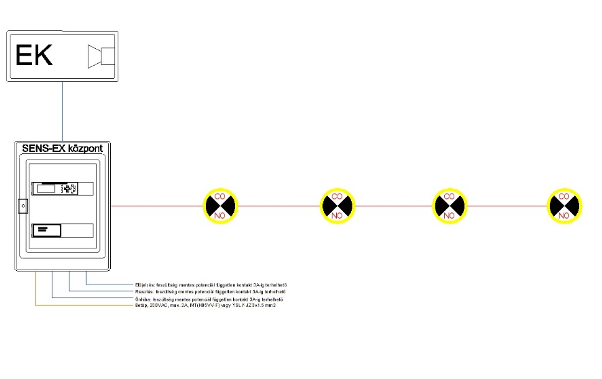

System design
Sensing data
Detectable gas: CO and NO2
Measuring range: CO: 0-300 ppm
NO2: 0-100 ppm
Calibration gas: CO and NO2Proposed signal levels on a time basis according to the standard

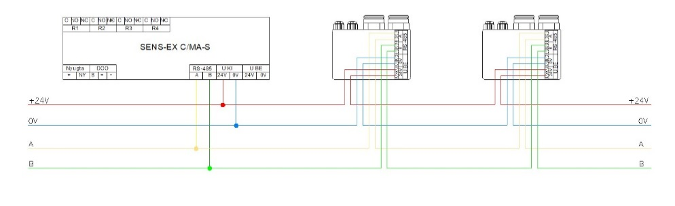

Wiring

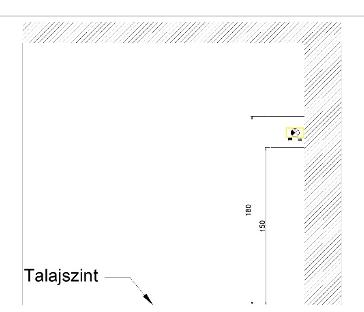

Placement
The sensor must be placed 150-180 cm from ground level on a side wall or on a vertical surface at inhalation height. One sensor can cover an area of around 25-50 m2, but the design of the room and the areas where the gas can stop must be taken into account.
Cabling
Depending on the distance between the SENS-EX TG/A-E-CONO2-A-GS sensor and the control panel, use a 4-core, 0.75-1.5 mm2, twisted-pair, shielded circular cable with a maximum resistance of 25 Ohm/1000 m. Use a stranded cable between the control panel and the sensor, connecting all sensors in the system in series.
| Technical specification | |
| Supply voltage | 24V DC (230V AC) |
| Power consumption | Max. 200mA |
| Sensor output signal | SENS-EX-V |
| Ambient temperature | -20°C to +50°C |
| Environmental pressure | 900-1100 mBar |
| Ambient humidity | 15 – 90 rH% |
| Protection (IEC 529) | IP54 |
| Size, weight | 125x105x60mm; ≈0.5 kg |
| Signal processing | Microprocessor |
| Cable connection (cable entry) | Fork clamp (gland) |
| Built-in sensor type | Chemical cell |
| Expected lifetime of the sensor | is 5-10 years |
| Method of sampling | Diffusion |
| Setup time | <30 sec |
| Flow rate | max 5 m/s |
Accessories/Order Information
TG/AI-CONO2-A-GS
Complete transmitter
