Benefits
- Advanced, intelligent, microprocessor-controlled equipment
- User-friendly, simple, convenient operation, clear LED indications
- Clearly audible and visible sound and light signals
- Fully automatic, programmable systems
- High flexibility, up to 4 levels of signalling on demand, addressed or conventional systems, reception of one or hundreds of sensors.
- Event memory and pause release options.
- Self-fault and service request indication for safety.
- Various installation options.
- Equipment meeting the latest standards.
- Long lifetime, economical operation.
- National service background
- 3 years warranty for operation according to the manual
Certifications
CE compliance
EN 60079-0:2010,
EN 60079-1:2008,
EN 60079-29-1:2008,
EN 50402/A1:2009,
EN 50104:2011,
EN 50271:2011,
EN 50402:2006,
EN 50054:2000,
EN 50057:2000,
EN 45544- (1,2,3,4):2015

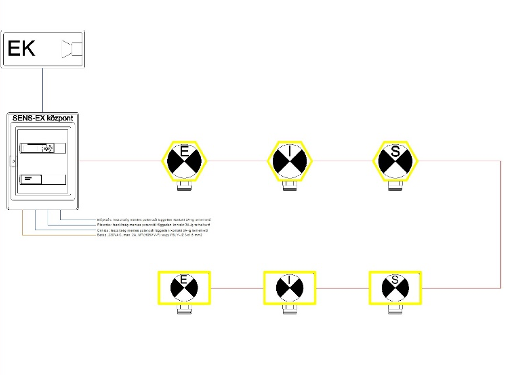

System plan

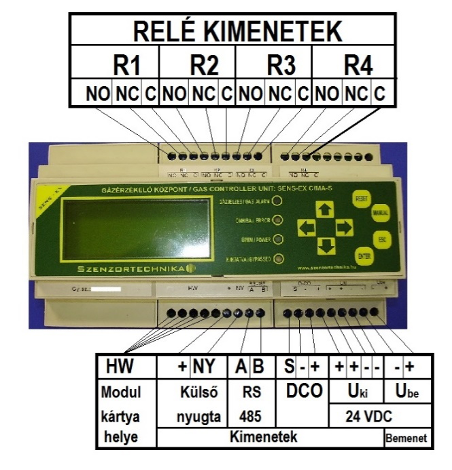

Connection
| Technical specification | |
| Number of signal levels | 4 + 2 self-fault |
| Power voltage | 24V DC |
| Signal levels | programmable |
| Current consumption | 60 mA |
| Uninterruptible power supply | Optional |
| Relay output | 4 x MORSE motherboard |
| Structure of the sensor network | strung cable network |
| Relay load capacity | ~ 250V 1A, 48VDC resistive |
| Connectable devices | maximum 256 |
| Relay extension possibility | 2 or 4 x Relay module |
| Measuring range | Depends on the sensor |
| Operating temperature | -10°C – +50°C |
| Operating pressure | 900 -1100 mBar |
| Display | LCD, LED status indication |
| Operating humidity | 10 – 90 rH% |
| Ingress protection (IEC 529) | IP21 |
| Signal processing | Microprocessor |
| Sound alert | Built-in buzzer |
| Clear | Push button |
Accessories / Ordering information
CMA-S
Rail mounted intelligent addressable gas detection control panel, 4 relays, LCD display, 24V DC, IP20
CMA-PS25-S
Power supply 2,5 A
CMA-PS15-S
Power supply 1,5 A
MFK12
MFK18
