Benefits
- Advanced, intelligent, microprocessor-controlled equipment
- Equipment that meets the latest standards
- Favourable price
- Nationwide service background,
- 3-year warranty for operation according to the manual
Certificates
CE compliance
EN 60079-0:2010,
EN 60079-1:2008,
EN 60079-29-1:2008,
EN 50402/A1:2009,
EN 50104:2011,
EN 50271:2011,
EN 50402:2006,
EN 50054:2000,
EN 50057:2000,
EN 45544-(1,2,3,4):2015

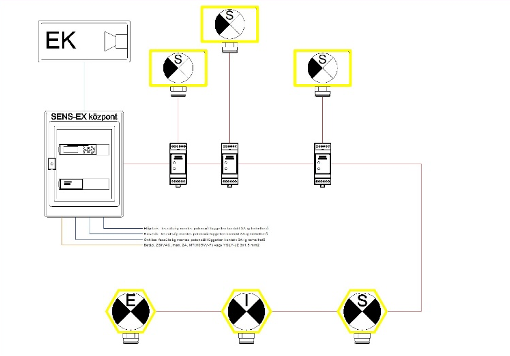

System plan

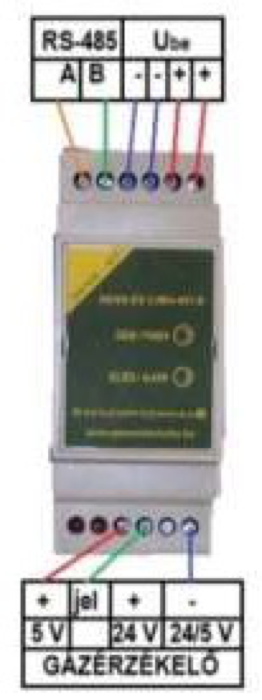

Connection
| Technical specification | |
| Power voltage | 7,5-32V DC |
| Current consumption | 200 mA |
| Operating temperature | -10°C – +40°C |
| Operating pressure | 900 -1100 mBar |
| Display | LED |
| Operating humidity | 10 – 90 rH% |
| Ingress protection (IEC 529) | IP20 |
| Analog input voltage range | 0-15 VDC |
| Analog input max current | 50 mA |
Accessories / Ordering information
CMA-INT-S
SENS-EX C/MA-INT-S Rail-mountable addressable interface module for conventional sensors, 1 zone, 1 sensor, IP20
