Benefits
- Advanced, intelligent, microprocessor-controlled equipment
- Equipment that meets the latest standards
- Favourable price
- Nationwide service background,
- 3-year warranty for operation according to the manual
Certificates
CE compliance
EN 60079-0:2010,
EN 60079-1:2008,
EN 60079-29-1:2008,
EN 50402/A1:2009,
EN 50104:2011,
EN 50271:2011,
EN 50402:2006,
EN 50054:2000,
EN 50057:2000,
EN 45544-(1,2,3,4):2015

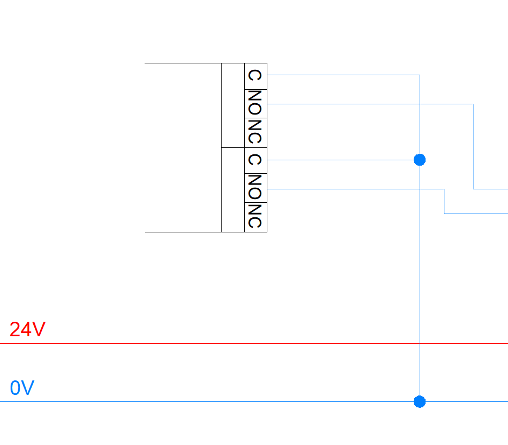

System plan

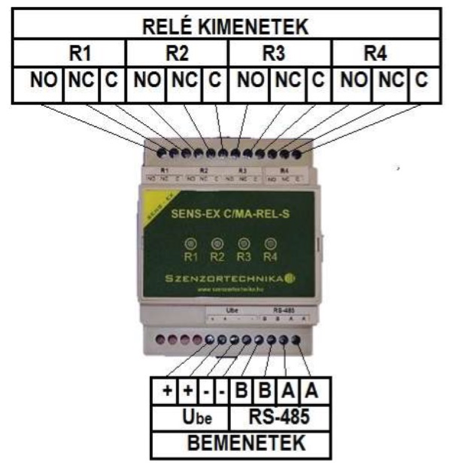

Connection
| Technical specification | |
| Number of signalling levels | 4+1 signal programmable |
| Power voltage | 24V DC |
| Signalling levels | Programmable on CMA central |
| Current consumption | 100 mA |
| Relay output | 4 x MORSE |
| Relay load capacity | ~ 250V 1A, 48VDC resistive |
| Operating temperature | -10°C – +50°C |
| Operating pressure | 900 -1100 mBar |
| Display | LED status indication |
| Operating humidity | 10 – 90 rH% |
| Ingress protection (IEC 529) | IP21 |
Accessories / Ordering information
CMA-REL-S
SENS-EX C/MA-REL-S Rail mounted control module with 4 programmable relays, 24V DC, IP20
