Benefits
- Sound and light indicator in one
- Separate audible and visual alarms
- LED design, low power consumption
- Continuous or flashing indication
- 12 or 24 V
- Equipment meeting the latest standards
- Replaceable label
- Favourable price
- Nationwide service background,
- 3 years warranty for operation according to the instruction manual
Certificates
CE Compliance
EN 60079-0:2010,
EN 60079-1:2008,
EN 60079-29-1:2008,
EN 50402/A1:2009,
EN 50104:2011,
EN 50271:2011

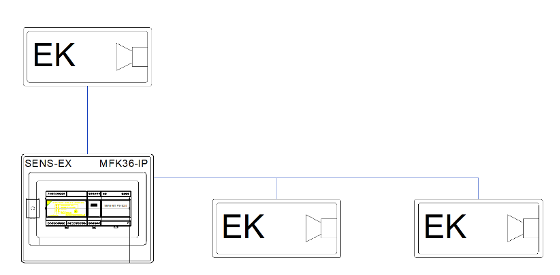

System plan
| Technical specification | Connection |
| Power voltage | 12-24V DC |
| Current consumption | max. 100mA |
| Operating temperature | -10°C – +50°C |
| Operating pressure | 900 -1100 mBar |
| Light signal | High luminosity LED |
| Sound signal | Buzzer |
| Sound pressure | – |
| Operating humidity | 10 – 90 rH% |
| Ingress protection (IEC 529) | IP43 |
| Size, weight | 330x150x70mm; ≈0,5kg |
| Signal processing | Microprocessor |
| Sound signal | Built-in buzzer |
| Cable connection (cable entry) | Fork clamp (gland) |
| Clear | Push button |
Location
The SENS-EX KK1 audible and visual indicators must be clearly visible on the side wall

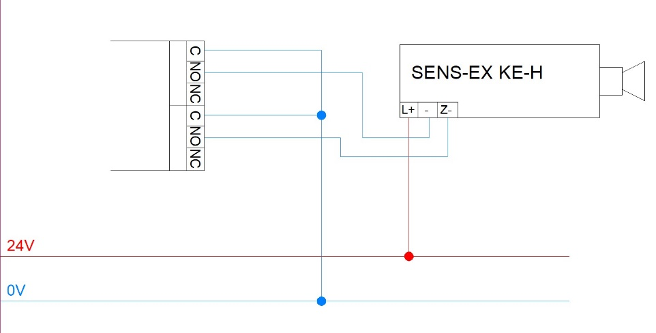

Wiring
For SENS-EX KK1 sound and light signalers, use 3-core, 0.75-1.5 mm2, twisted-pair, shielded circular cable with a maximum resistance of 25 Ohm/1000 m. You can also use stranded, star-point or branched wiring between the control panel and the signal unit.
Accessories / Ordering information
FEL-AMMONIA – Ammonia hazard label
FEL-BEHAJTANI – No entry sign
FEL-BELEPNI – Do not enter sign
FEL-HELYSEGET – CO Danger, leave area sign
FEL-CO2 – CO2 danger label
FEL-EGYEDI – Custom inscription (min. 2pcs)
FEL-CO – „CO DANGER!” label
FEL-GASALARM – label – „GAS ALARM”
FEL-GAZVESZELY – Gas Danger sign
FEL-IDEGENNY – Foreign language sign
FEL-OHIANY – Oxygen shortage label
