Advantages
- Modern, intelligent, microprocessor-controlled equipment
- Fully automatic operation
- Self fault indication for safety
- ppm level chemical cell sensor
- Equipment according to the latest standards
- Reasonable price
- Explosion-proof design
- National service background
- 3-year warranty in case of operation according to the manual
Certificates
CE conformity
EN 50402:2017,
EN 50104:2020,
EN 50271:2018,
EN 50402:2017,
EN 50054:2000,
EN 50057:2000,
EN IEC 60079-0:2018,
EN 60079-1:2015,
EN 60079-29-1:2017,
EN 50402:2017,
System design
Sensing data
Detectable gas: NH3
Measuring range: 0-100 ppm
Calibration gas: NH3
Relay output (AR, ACR): 24 VDC 1A
4-20 mA: 4 mA=0 ppm, 20 mA=100 ppm
Signal level I: 25 ppm
II. signal level: 50 ppm
III. signal level: 75 ppm
IV. signal level: 100 ppm
Wiring
Placement

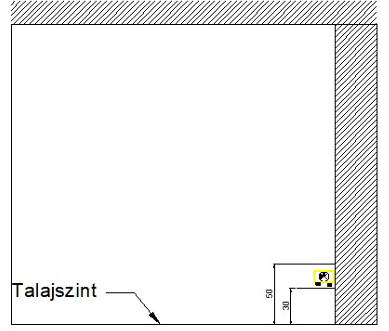

The sensor must be placed 30-50 cm from ground level on a side wall or on a vertical surface. One sensor can cover an area of around 25-50 m2, but the design of the room and the areas where the gas can stop must be taken into account.
Cabling

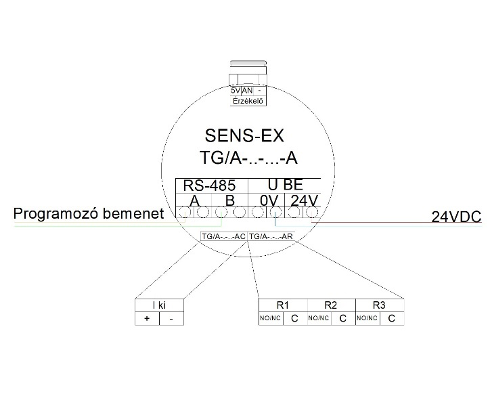

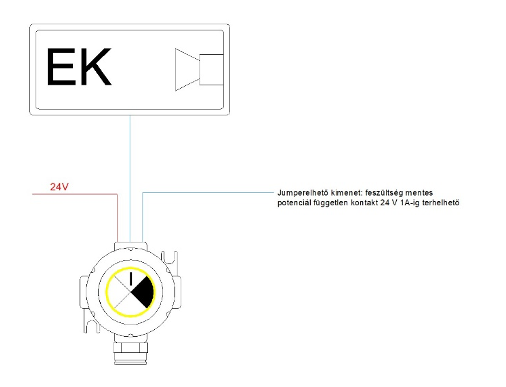

The sensor must be wired with the necessary cable, for 4-20 mA a minimum 3-core cable, in the case of a relay, the cable required to connect the control is recommended, with a maximum of 8-core cable.
| Technical specification | |
| Supply voltage | 24V DC (230V AC) |
| Power consumption | Max. 200mA |
| Sensor output signal | 4-20mA, relay output |
| Display | seven-segment LCD and LED |
| Ambient temperature | -20°C to +50°C |
| Environmental pressure | 900-1100 mBar |
| Ambient humidity | 15 – 90 rH% |
| Protection (IEC 529) | IP54 |
| Size, weight | 125x105x60mm; ≈0.5 kg |
| Signal processing | Microprocessor |
| Cable connection (cable entry) | Terminal block (plug) |
| Built-in sensor type | Chemical cell |
| Expected lifetime of the sensor | 3 years |
| Method of sampling | Diffusion |
| Setup time | <30 sec |
| Flow rate | max 5 m/s |
| A sign of protection | Ex II 2 G Ex db IIC T6 Gb |
Accessories/Order Information
SENS-Ex TG/AE-NH3-AC
Explosion-proof 4-20mA transmitter
SENS-Ex TG/AE-NH3-AR
Explosion-proof relay transmitter
