Advantages
- Modern, intelligent, microprocessor-controlled equipment
- Fully automatic operation
- Self fault indication for safety
- Long-life infrared sensor cell
- Equipment according to the latest standards
- Reasonable price
- Explosion-proof design
- National service background
- 3-year warranty in case of operation according to the manual
Certificates
CE conformity
EN 50402:2017,
EN 50104:2020,
EN 50271:2018,
EN 50402:2017,
EN 50054:2000,
EN 50057:2000,
EN IEC 60079-0:2018,
EN 60079-1:2015,
EN 60079-29-1:2017,
EN 50402:2017,
BKI17ATEX0012 X,

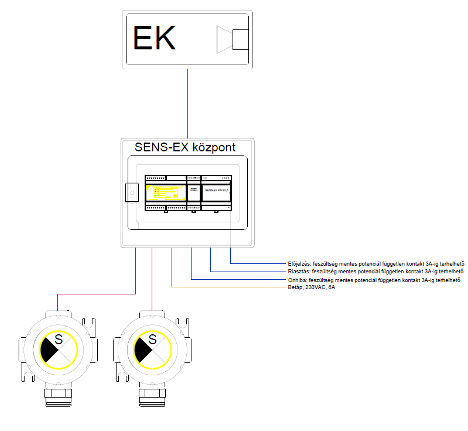

System design
Sensing data
Detectable gas: CH
Measuring range: 0-100 ARH%
Calibration gas: CH4
Recommended signal levels
In the case of SENS-EX CD1(2)-S-(U), there can be two signaling levels
Signal level I: 10 ARH%
II. signal level: 20 ARH%
III. signal level: 30 ARH%IV. signal level: 40 ARH%

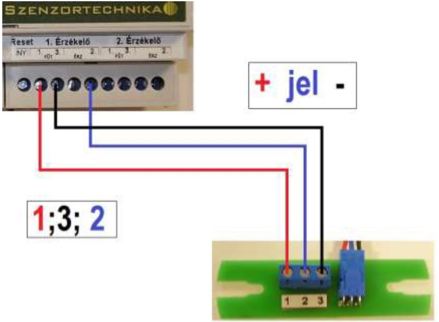

Wiring
Placement

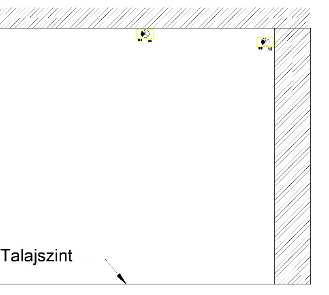

The sensor must be placed on the ceiling using a bracket or on a side wall near the ceiling. One sensor can cover an area of around 25-50 m2, but the design of the room and the areas where the gas can stop must be taken into account.
Cabling
Depending on the distance between the SENS-EX TG/AS-CHS-S sensor and the center, use a 3-core, 0.75-1.5 mm2, twisted-core, gas-tight circular cross-section cable, max. resistance 25 Ohm/1000 m. Use the radial cabling principle between the center and the detector, introduce a separate cable for each sensor.
| Technical specification | |
| Supply voltage | 5V DC |
| Power consumption | 160mA |
| Sensor output signal | SENS-EX-R |
| Ambient temperature | 0°C – +50°C |
| Environmental pressure | 900-1100 mBar |
| Ambient humidity | 15 – 90 rH% |
| Protection (IEC 529) | IP65 |
| Size, weight | 125x105x60mm; ≈0.5 kg |
| Signal processing | Microprocessor |
| Cable connection (cable entry) | Terminal block (plug) |
| Built-in sensor type | Semiconductor |
| Expected lifetime of the sensor | 3-5 years |
| Method of sampling | Diffusion |
| Setup time | <30 sec |
| Flow rate | max 5 m/s |
| A sign of protection | Ex II 2 G Ex db IIC T6 Gb |
Accessories/Order Information
xTG/AS-CHS-S
Complete transmitter
TMSZRB-3/4NIK/4-12
Gland for nickel-plated small cable (4-12mm)
TMSZRB-3/4NIK/10-18
Gland for nickel-plated large cable (10-18mm)
